Nursery Equipment

A machine suitable for filling plastic pots automatically loaded from the destacker onto the rotating head which does the following: filling, dibbling and expulsion onto the transplant belt. Machine speed and amount of peat can be adjusted to determine the density of the filling process. Earthen pots can be used if loaded by hand. The easy adjustment allows rapid adaptation of the machine to various kinds of pots. Machine composition:- Peat filling hopper- Rotating head with expeller- Pots destacker- Rotating dibble- No. 7 drilling tips (from 30mm to 90mm)- Fixed speed transplant belt Product Brochure

Integrated electronic seeder holding drum system and “row-by-row” system. It allows high production work as well as many small sowing stocks of difficult seeds. The drum seeder has different speed control of the drum and transport by allowing to deposit more seeds per cell without changing the drum. The “row-by-row” system allows making use of a small quantity of seeds (naked or pelleted). The seeder dibbles, sows, covers (with Vermiculite/Agriperlite), waters and stacks. The adjustment of these operations and the speed of the belt are controlled from the touchscreen control panel. The easy adjustment and the simplicity in changing the drums, seeding bars and/or nozzles, allow to seed in different types of trays with different types of seeds. Product Brochure

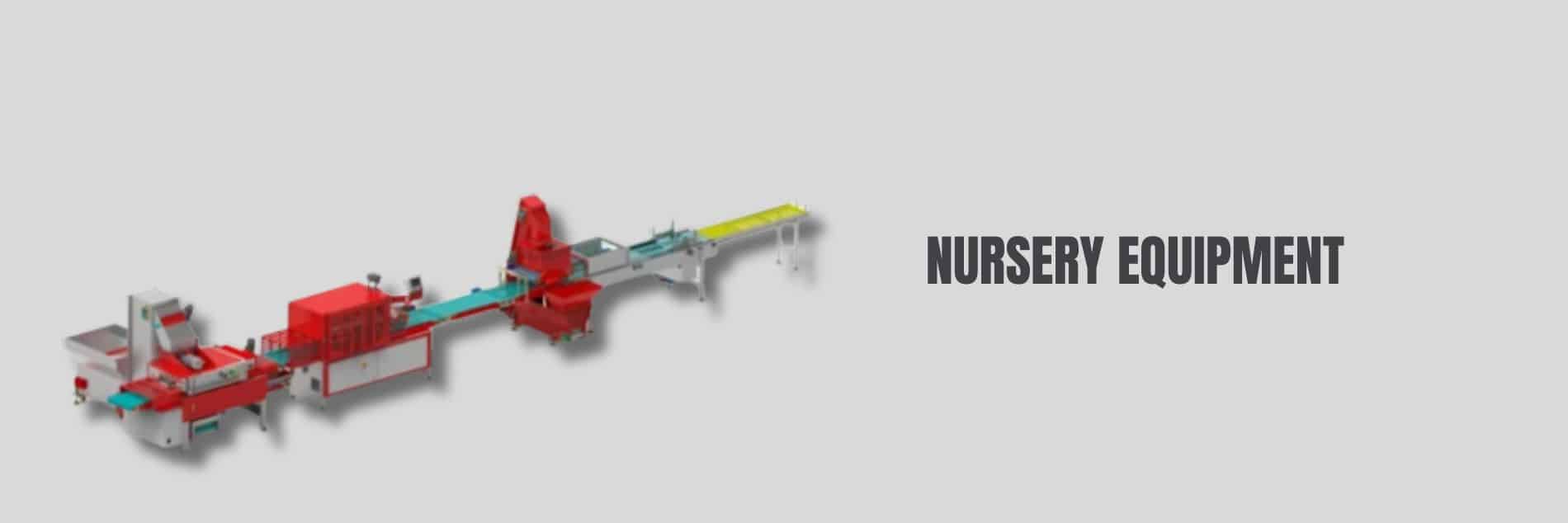

Seeding line with LR1200 seederVery high-performance electronic seeder, ideal for large farms. Equipped as standard with Mitsubishi Electric® PLC, inverter, driver and touch screen.The top-of-the-range version of the drum seeders, the render shows a version where it is inserted into a sowing line, combined with the filler mod. RC1200 and peat/vermiculite cover with automatic recirculation.The dibbling system is a mobile plate, i.e. this moves together with the tray for a section of its advancement: this has the great advantage of combining the peculiar characteristics of the dibbling plate (modulation and precision) with a speed of 1200 trays per hour.The LR1200 is then equipped on the sowing drum with a brushless motor with independent speed from that of the belt to ensure maximum precision and modulation of the work cycle. The hard-anodized aluminium sowing drums can be with 15 or 30 slots. Stainless steel inserts are used for the smallest drilling diameters.Overall, the line has been designed with particular attention to ergonomics and maximum containment of the time needed to carry out the routine operations involving the sowing cycles.The change of the drum, the plate and the seed are therefore intuitive and fast, while the recipe data, managed by PLC, can be easily managed at any time. The presence of the PLC then allows, upon request, the connection with the Company servers via Modbus TCP® or OPC UA ® system. Product Brochure
